Polyamide (PA) Slit Spiral Conduit
 Yarıklı Spiral Boru.jpg)

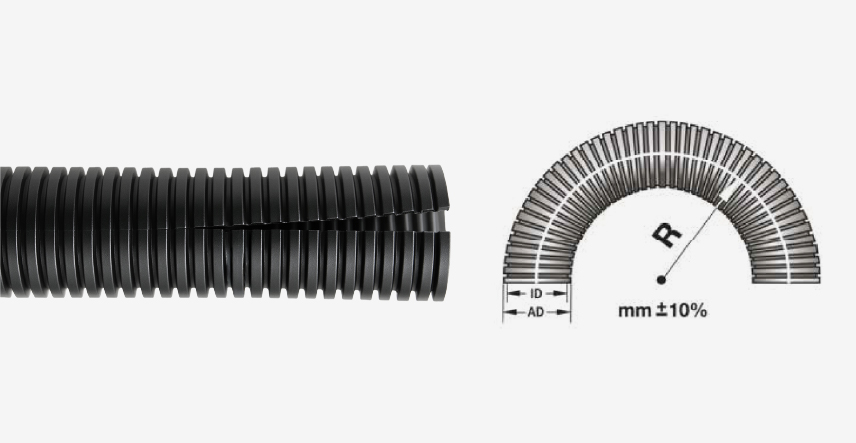

Polyamide (PA 6) Slit Spiral Conduit
Technical Detail
- PA (Polyamide) Spiral Conduit
Temperature range:
- -40 °C to +120 °C, up to +150 °C for short periods Approx. 400 N compression strength per 100 mm
Material Details
- Material: Polyamide (PA) 6
- Flammability according to UL 94 (V2)
- Color: Black (RAL 9011), Grey (RAL 7031)
Application Areas
- Machinery and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Automotive
- Control cabinet construction
- Conduit for medium to heavy-duty applications
Compliance / Standards
- RoHS and REACH compliant
- UV-resistant structure suitable for external installations
Chemical Resistance
- Resistant to oils, greases, fuels, and industrial cleaning solvents
| Code Black | Code Grey | Inner Diameter(mm) | Outer Diameter(mm) | Packaging(m) | Unit Price |
|---|---|---|---|---|---|
| SEPAY-7S | SEPAY-7G | 6,5 | 10 | 100 mt | Ask For Price |
| SEPAY-8,5S | SEPAY-8,5G | 8,5 | 12 | 100 mt | Ask For Price |
| SEPAY-9S | SEPAY-9G | 10 | 13 | 100 mt | Ask For Price |
| SEPAY-11S | SEPAY-11G | 12 | 15,8 | 50 mt | Ask For Price |
| SEPAY-13,5S | SEPAY-13,5G | 14,2 | 18,5 | 50 mt | Ask For Price |
| SEPAY-16S | SEPAY-16G | 16,5 | 21,2 | 50 mt | Ask For Price |
| SEPAY-21S | SEPAY-21G | 23,5 | 28,4 | 50 mt | Ask For Price |
| SEPAY-26S | SEPAY-26G | 26 | 34 | 50 mt | Ask For Price |
| SEPAY-29S | SEPAY-29G | 29 | 34,5 | 25 mt | Ask For Price |
| SEPAY-36S | SEPAY-36G | 36 | 42,5 | 25 mt | Ask For Price |
| SEPAY-48S | SEPAY-48G | 48 | 54,5 | 25 mt | Ask For Price |
